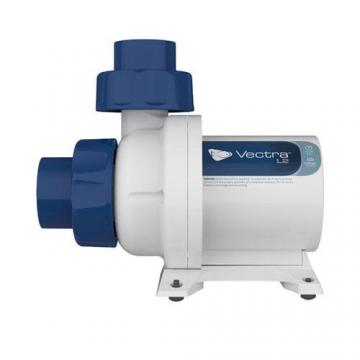

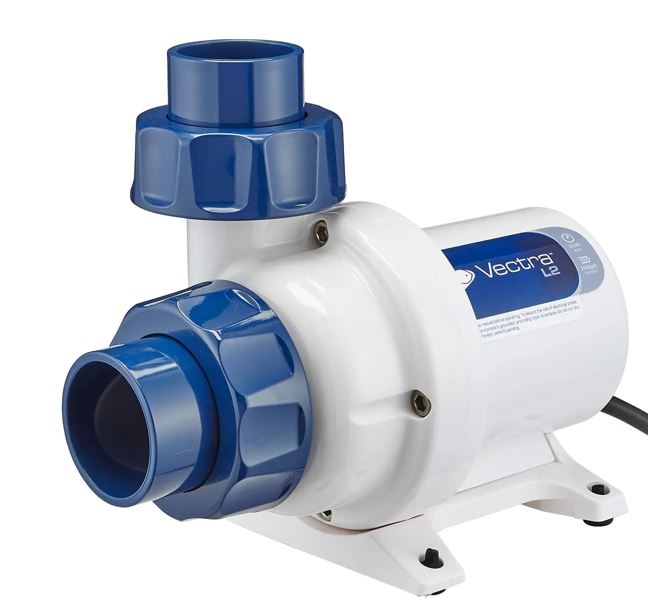

Vectra L2 Pump (Mobius)

Introducing the Worlds Smartest Return Pump

With some of the most advanced pump technology on the market, EcoTech Marine has taken return pumps to the next level. The Vectra L2 combines QuietDrive technology with Mobius app compatibility for precise control, silent operation, and unmatched flexibility. Use it as a traditional return pump or in a closed loop configuration to access the same EcoSmart modes that made Vortech pumps legendary.

Features

• Mobius App Ready wireless programming via iOS & Android

• QuietDrive Technology reduced DC motor noise

• Easy maintenance with quick couplers

• Improved thermal management

• Controllable flow up to 3100 GPH

• Closed loop or return pump operation

• Inline or submersible configuration

• Battery Backup compatible

• MXM Integration for Apex Fusion control

The Vectra Advantage

Improved Installation
Quick Couple fittings make setup, cleaning, and adjustments effortless. The volute can also rotate to match your plumbing layout.

Return Pump or Closed Loop

• Return Pump Mode Includes calibration & Speed Lock

Constant Speed: Constant Speed mode is the default mode of the Vectra, this makes the pump produce flow at a constant speed that is determined by the position of the dial.

Feed Mode: At the touch of a button the Vectra pump will temporarily pause the current mode and idle allowing food to be added to the tank without being cycled into the overflow and filtration.

Speed Lock: Speed Lock gives you the ability to lock in a desired speed on the pump by disabling the control dial protecting you from accidental and not so accidental unwanted changes in speed.

• Closed Loop Mode Features random and pulsing flow patterns

Lagoonal Random: Lagoonal Random mode simulates a low-energy lagoon environment. The speed of the pump is changed slowly to recreate the gentle currents of a lagoon.

Reef Crest Random: Reef Crest Random mode simulates a high-energy reef environment. The pump will change speed frequently and drastically to simulate crashing waves and surging tide. This is a favourite of SPS coral.

Gyre: Gyre mode creates a flow pattern consisting of uniform clockwise and counter clockwise flow levels pulsing at a selected interval between two seconds and two hours.

Inline or Submersible
The sealed motor and magnetic drive allow for either internal (submersible) or external (inline) use.

Battery Backup Compatible
In a power outage, keep vital flow running with the EcoTech Battery Backup system reef insurance for your livestock.

Cost Savings
Unlike AC pumps with inefficient choke valves, the Vectra maintains optimum efficiency at any flow setting, saving energy and money long-term.

Mobius Control

Every Vectra pump comes Mobius-ready for simple, wireless smart control. Program modes, adjust flow, or integrate with other EcoTech and AI devices right from your mobile device.

Compatible with MXM Integrate EcoTech and AI pumps and lights with Neptune Apex Fusion.

Specifications

• Max Flow: 3100 GPH (11,500 lph)

• Max Head Height: 21.5 ft (6.5m)

• Footprint: 5" L 8.5" W (126.8mm x 215.15mm)

• Input Fitting: 1.5" (38mm)

• Output Fitting: 1.25" (31.75mm)

• Power Supply: 150W

Input and output fittings are compatible with standard PVC pipe.

What’s Included?

• Vectra L2 Mobius Ready DC Pump

• Vectra QuietDrive Driver

• Driver Mounting Bracket

• Power Supply

• Input Quick Coupler

• Output Quick Coupler

• Instruction Manual
